MALAYSIA PROJECT
Affin Bank Edge Protection Project in Malaysia

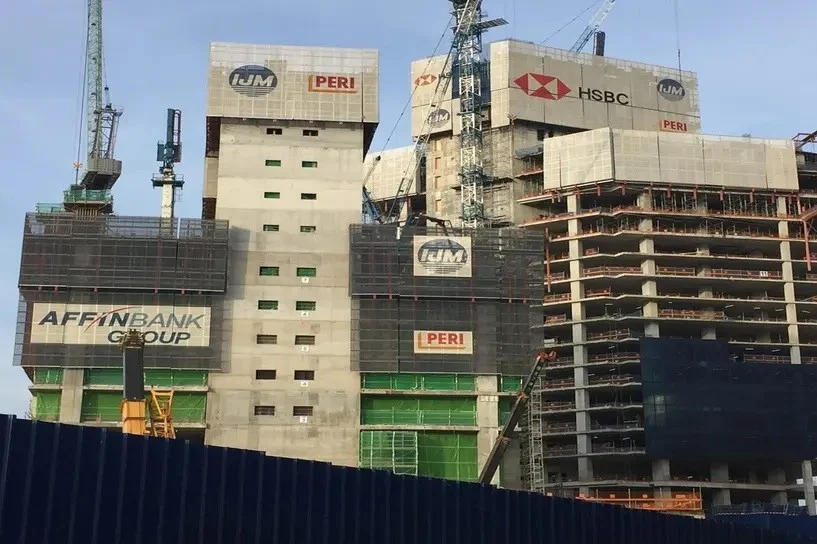

APAC supplied a modular temporary edge protection solution for the construction of Affin Bank's new headquarters at Tun Razak Exchange (TRX) in Kuala Lumpur. Instead of replacing the contractor's existing lightweight mesh panels, the system was redesigned around them using Socket Bases, 1.2 m Safety Posts and Adjustable Link Bars.
CLIENT
IJM Construction
LOCATION
Kuala Lumpur
PROJECT
47-Storey Headquarters
YEAR
2018
PROJECT CHALLENGE
Improve Edge Protection Performance Without Replacing Existing Equipment
The contractor already had lightweight mesh panels on site, but the panels did not provide sufficient structural performance on their own for the required edge protection system.Three Practical Site Constraints
- The existing lightweight mesh panels could not provide the required structural performance on their own.
- A tight construction programme and confined working areas required fast installation with minimal dependence on crane lifting.
- The contractor wanted a flexible system that could be reused across both slab edges and stair areas.
APAC SOLUTION
Build the Structural Guardrail Around the Existing Mesh Panels
Rather than replacing the contractor's existing panels, APAC developed a modular system using Socket Bases, 1.2 m Safety Posts and Adjustable Link Bars.
Separate the Guardrail and Infill Functions
The Adjustable Link Bars provided the primary guardrail function, supported by the Safety Posts and Socket Bases. The contractor's existing lightweight mesh panels were retained as infill protection rather than being relied upon as the main structural guardrail. This allowed the complete configuration to achieve the required EN 13374 safety performance while continuing to make practical use of equipment already available on site.
FIXING
Socket Bases
Provided the fixing interface for the modular edge protection system.
SUPPORT
1.2 m Safety Posts
Provided the vertical support for the guardrail configuration.
GUARDRAIL
Adjustable Link Bars
Provided the primary guardrail function while allowing the existing mesh panels to remain as infill.
Existing Mesh Panels Were Reused — But Their Function Changed
The system did not rely on the lightweight mesh panels alone for structural edge protection. The APAC components provided the primary guardrail structure, while the existing panels continued to serve as infill protection.
SYSTEM FLEXIBILITY
One Modular System for Slab and Stair Edge Protection
The same modular components could be redeployed between different areas of the project as construction progressed.
SLAB EDGE
Slab Edge Protection
The modular configuration provided temporary protection around exposed slab edges during construction.
FLEXIBLE DEPLOYMENT
Reusable Across the Project
The same Safety Posts and Adjustable Link Bars could also be redeployed for stair-edge protection, reducing the need for additional dedicated equipment.
The Value Was in the System Configuration
By combining new structural guardrail components with reusable existing mesh panels, the contractor gained a more flexible solution for different work areas without unnecessarily replacing all existing equipment.
RELATED SOLUTIONS
Explore Related Edge Protection Solutions
Stair Edge Protection System
Explore temporary edge protection solutions for stair flights, landings and other exposed stair areas.
Formwork Edge Protection System
Review edge protection configurations designed for formwork structures and different beam fixing conditions.
Excavation Edge Protection
Explore temporary guardrail solutions for excavation, perimeter areas, and other work-at-height applications.
FAQ
Affin Bank Project FAQs
Why could the contractor's existing mesh panels not be used alone?
The lightweight panels did not provide sufficient structural performance on their own for the required temporary edge protection configuration.Did APAC replace the existing mesh panels?
No. The existing panels were retained as infill protection, while Socket Bases, 1.2 m Safety Posts and Adjustable Link Bars provided the primary guardrail structure.What was the function of the Adjustable Link Bars?
The Adjustable Link Bars provided the primary guardrail function as part of the complete modular edge protection system.Could the same components be used for stair protection?
Yes. The modular components could also be redeployed for stair-edge protection, helping reduce the requirement for additional dedicated equipment.Can APAC work with edge protection equipment we already own?
Potentially. Existing equipment first needs to be reviewed for dimensions, function, condition and compatibility before it is incorporated into a new system configuration.Need a More Flexible Edge Protection Configuration?
Send us your structural drawings, site photos or details of the edge protection equipment you already have. APAC can review whether a compatible modular solution is practical for your project.
